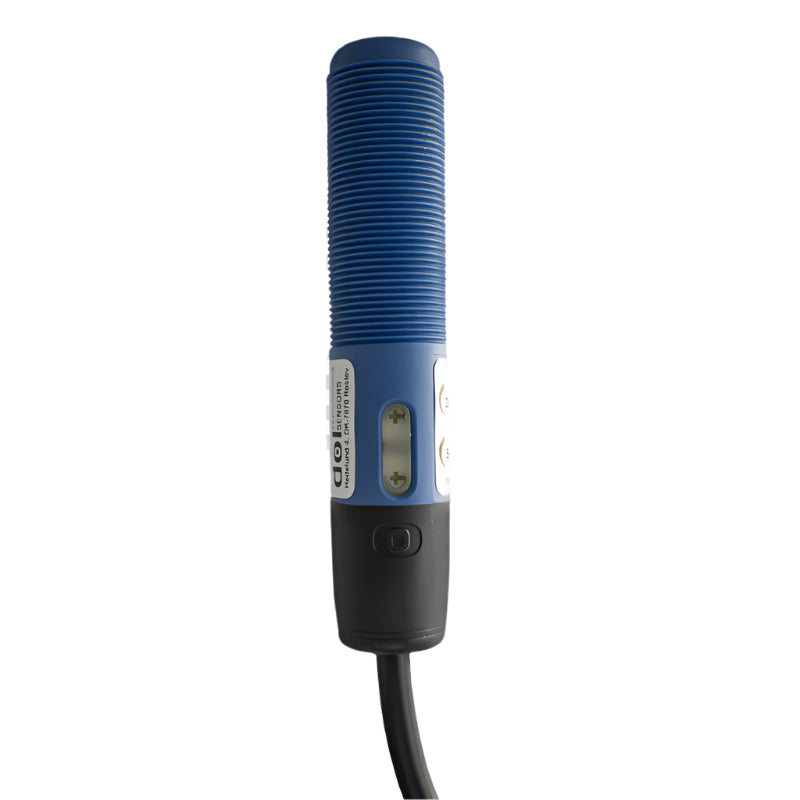

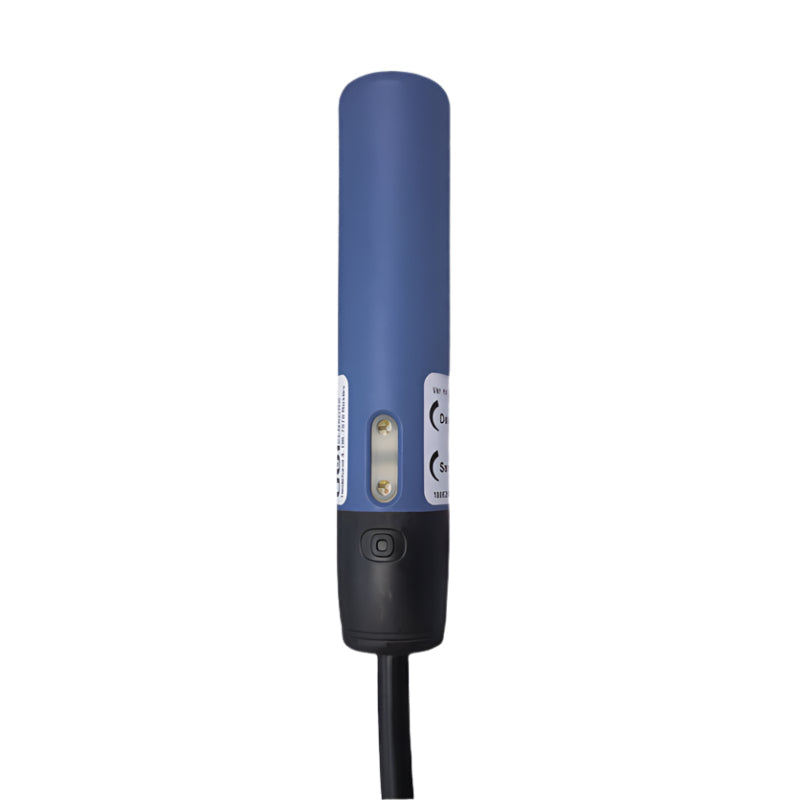

Designed for compact spaces like feed pans and hoppers, the DOL 26 offers reliable detection of feed, grain, bedding, and other loose materials in harsh livestock environments.

Why the DOL 26 Stands Out:

• Small & robust: 18 mm diameter fits neatly in small installations
• Built tough: IP69K / NEMA 1/3/4/6/12/13 – resists wash-down, dust, humidity, EMI, short circuits, and overloads
• Flexible outputs: 2-wire SCR or 4-wire PNP/NPN, straight or angled cable, smooth or threaded housing
• Adjustable settings: Sensitivity (0–12 mm), ON/OFF delay (0.1–600 s), MaxRun timer via trimmers; iDOL NFC version adjustable via SmartAdjust App
• Energy efficient: Low standby power enables parallel installations for cross-augur systems

Available Variants:

• QC PART #: 13378 | MFN: 105114: Smooth housing, SCR output, 10 m cable
• QC PART #: 13379 | MFN: 105134: Specialty variant for custom needs
• QC PART #: 13380 | MFN: 105208: Smooth housing with angled cable, PNP/NPN outputs

Ideal For:

• Feed level detection in poultry, pig, cattle operations
• Grain, pellet, and bedding sensing
• Integration with PLCs, relays, contactors
• Wash-down areas with limited space and maintenance needs
