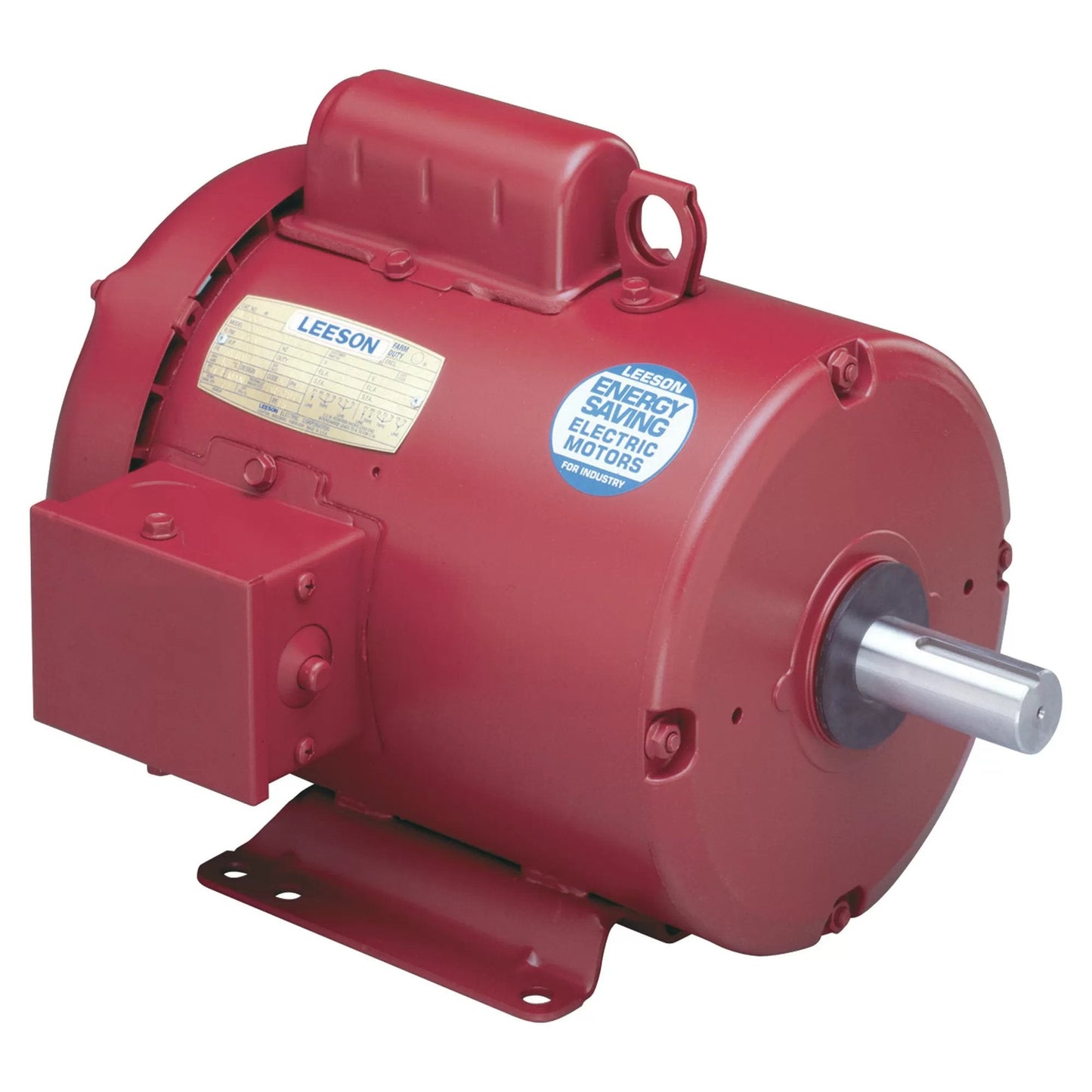

Heavy-Duty Single Phase Hi-Torque Motors are designed specifically for severe "Farm Duty" applications. The motors have double sealed ball bearings prelubricated with Exxon POLYREX® EM Grease which has an operating temperature range of -20° F to +350° F and a special formulation to provide extra bearing protection. These Lesson® Motors are single Phase, 60 Hertz.
- Gasketed Capacitor Housing and Conduit Boxes
- Copper Windings and Varnish
- Manual Overload Protection
- Totally Enclosed Fan Cooled
- Double Shielded Ball Bearings
- Rubber Boot Over Manual Reset for Weather Protection
- Capacitor Start
- Service Factor 1.15
- High Starting Torque
|Item #||Model #||HP||RPM||F.I. Amps 230 Volt||Frame||Voltage||Shaft||Ships:||Approx.
|190057||131542||3||1740||19||184T||230||1 1/8||Motor Freight**||99|
|190058||131543*||5||1740||23||184T||230||1 1/8||Motor Freight**||106|
|190620||140130*||7 1/2||1740||33.6||215T||230||1 3/8||Motor Freight**||144|
|190621||140414*||10||1740||40||215T||230||1 3/8||Motor Freight**||154|
|260030||Power Supply Cords|
|*Capacity start/capacitor run design for reduced amperage, others are capacitor start/indication run.
**For items shipping via motor freight, we'll call you with shipping charges
|Manufacturer Part Number||110088|
Manuals & ResourcesTop
Replaced this same model Leeson motor with this one. Everything works great!
Premium motor with more than enough power to run my large rock saw. Best price on the internet with fast shipping. It's a bit complicated to wire for the non electrician so I had it done by a pro for a nominal fee.
best price on a good motor
these guys have the best price on Leeson motors that I have found on the enternet.
