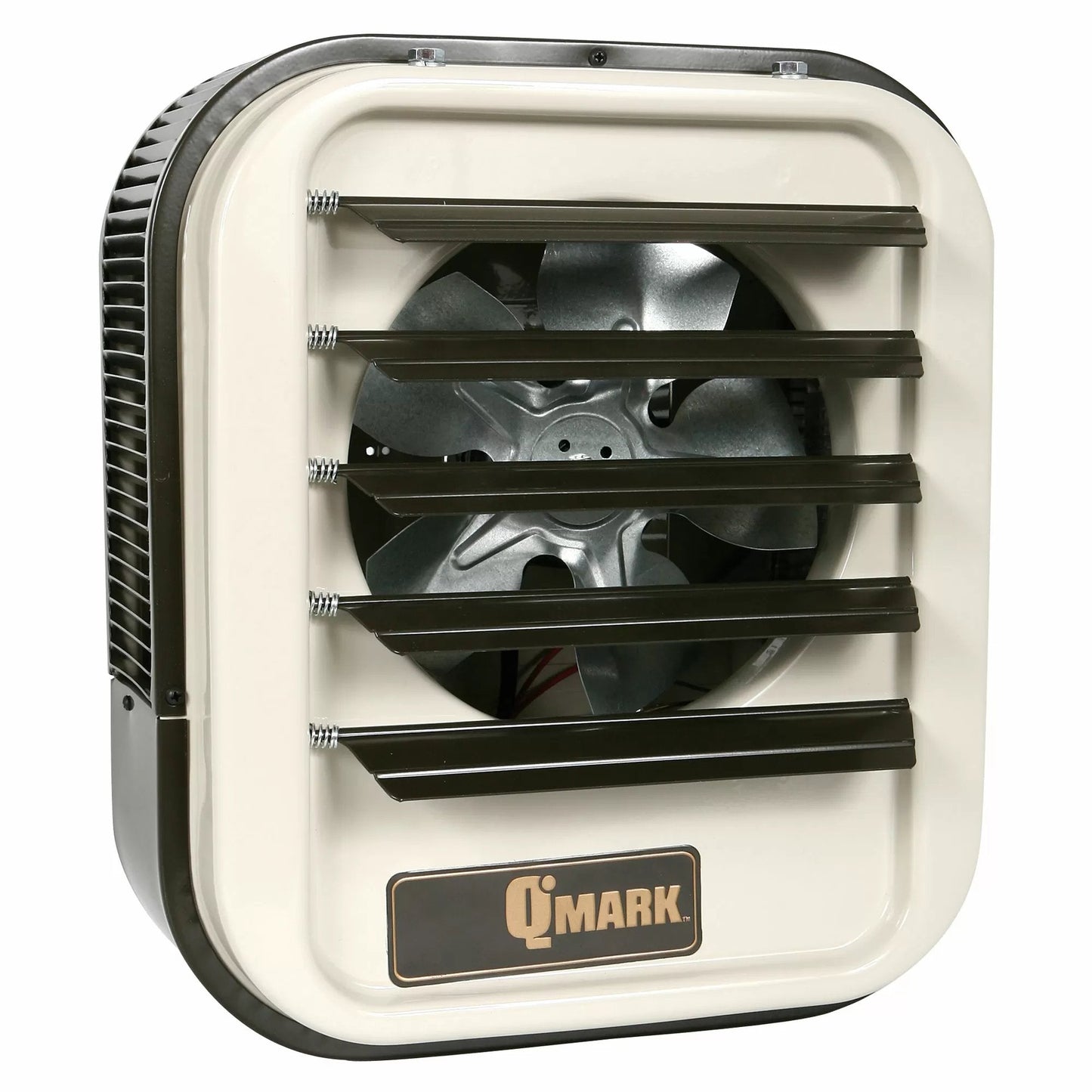

QMark MUH 480V Electric Unit Heaters

Grouped product items
	QMark® MUH0341 Electric Unit 3 kW Heater $707.00 QC Part # 21412 Usually Ships In 3-4 Weeks QC Part # 21412 Usually Ships In 3-4 Weeks
	QMark® MUH0541 Electric Unit 5 kW Heater $767.00 QC Part # 21413 Usually Ships In 3-4 Weeks QC Part # 21413 Usually Ships In 3-4 Weeks
	QMark® MUH074 Electric Unit 7.5 kW Heater $964.00 QC Part # 21414 Usually Ships In 3-4 Weeks QC Part # 21414 Usually Ships In 3-4 Weeks
	QMark® MUH104 Electric Unit 10 kW Heater $1,019.00 QC Part # 21415 Usually Ships In 12-14 Weeks QC Part # 21415 Usually Ships In 12-14 Weeks
	QMark® MUH154 Electric Unit 15 kW Heater $1,643.00 QC Part # 21426 Usually Ships In 3-4 Weeks QC Part # 21426 Usually Ships In 3-4 Weeks
	QMark® MUH204 Electric Unit 20 kW Heater $2,660.00 QC Part # 21427 Usually Ships In 3-4 Weeks QC Part # 21427 Usually Ships In 3-4 Weeks
	QMark® MUH254 Electric Unit 25 kW Heater $3,197.00 QC Part # 21428 Usually Ships In 3-4 Weeks QC Part # 21428 Usually Ships In 3-4 Weeks
	QMark® MUH304 Electric Unit 30 kW Heater $3,699.00 QC Part # 21429 Usually Ships In 3-4 Weeks QC Part # 21429 Usually Ships In 3-4 Weeks
	QMark® MUH404 Electric Unit 40 kW Heater $4,727.00 QC Part # 21430 Usually Ships In 3-4 Weeks QC Part # 21430 Usually Ships In 3-4 Weeks
	QMark® MUH504 Electric Unit 50 kW Heater $5,694.00 QC Part # 21431 Usually Ships In 3-4 Weeks QC Part # 21431 Usually Ships In 3-4 Weeks

Made of heavy gauge die-formed steel, forced air QMark MUH108 Electric Unit Heaters are ideal for garages, workshops, warehouses, factories, stores, shipping rooms, power stations, and aircraft hangers. These versatile heaters can be used for primary, supplementary, spot, or dual-system heating.

Applications: Factories, Warehouses, Garages, Stores, Shipping Rooms, Power Stations, Aircraft Hangers

Features

Mount horizontally or vertically
Completely enclosed fan motor
Optional control kits are field installable, increasing MUH adaptability to the specification market
Summer fan kits are available to adapt the heater into a cooling fan
Heavy-gauge die-formed steel housing. The front and back is a neutral grey, the wrap-around steel section is a statuary bronze color
Ruggedly built, yet lighter weight for easier installation. No piping flues, valves, or traps
Advanced pull-through air flow design draws air across the heating element for more even air distribution & cooler element operation
Specifically designed venturi outlet to meet that added throw as required in a vertical position
Individually adjustable discharge louvers to control airflow
1- or 3-phase wiring on 5-10 kW 208/240V and 15 kW 208V units (field interchangeable)
Aluminum-finned, copper clad steel sheath heating element has a longer life because of cooler sheath temperature and faster heat dissipation
Fan delay feature eliminates cold drafts. The element heats up before the fan cuts in, then the fan continues to distribute heat after the element shuts off
24V control transformer standard on most models, providing a safer and more accurate means of temperature control. 3 kW and 5 kW, 208-277V, have line voltage controls as standard
Automatic reset linear thermal cut-out, capillary type, provides protection over the entire length of element areas
Meets all UL, NEC & OSHA requirements

Size	Height	Width	Depth
MUH03 & 05	16"	14"	7 1/2"
MUH07 & 10	21 3/4"	19"	7 1/2"
MUH15 & 20	21 3/4"	19"	12 3/4"
MUH25 & 30	30"	26 5/8"	11 3/4"
MUH40 & 50	30"	26 5/8"	17 1/8"

QC Part #	MUH #	Phase	kW	BTU/hr	Volts	Amps	Control Volt	CFM	Temp. Rise	Air Throw	Max. Effect	Weight
21412	MUH0341	3	3	10.2	480	3.6	24	350	27°	12'	8'	27 lbs
21413	MUH0541	3	5	17	480	6	24	350	45°	12'	8'	27 lbs
21414	MUH074	3	7.5	25.6	480	9	24	650	37°	18'	9'	38 lbs
21415	MUH104	3	10	34.1	480	12	24	650	49°	18'	9'	38 lbs
21426	MUH154	3	15	51.2	480	18	24	910	52°	35'	11'	53 lbs
21427	MUH204	3	20	68.2	480	24	24	1,320	48°	41'	12'	60 lbs
21428	MUH254	3	25	85.2	480	30	24	2,100/1,800	38°/44°	50'	13'	93 lbs
21429	MUH304	3	30	102.3	480	36	24	2,100/1,800	45°/53°	50'	12'	93 lbs
21430	MUH404	3	40	136.4	480	48	24	3,000/2,600	42°/49°	60'	15'	114 lbs
21431	MUH504	3	50	170.5	480	60.2	24	3,000/2,600	53°/61°	60'	15'	114 lbs

Optional Accessories

Universal Mounting Bracket for MUH03, MUH05, MUH07 & MUH10 Heaters, QC Part #21023
Universal Mounting Bracket for MUH15 & MUH20 Heaters, QC Part #21440
Universal Mounting Bracket for MUH25 & MUH30 Heaters, QC Part #21441
Unit Mount 2 Stage Thermostat for 5 kW Heaters, QC Part #21025
Unit Mount Single Stage Thermostat 7.5 & 10 kW Heaters, QC Part #21026
Compatible Remote Mount Thermostat for 5 kW Heaters, QC Part #10001
