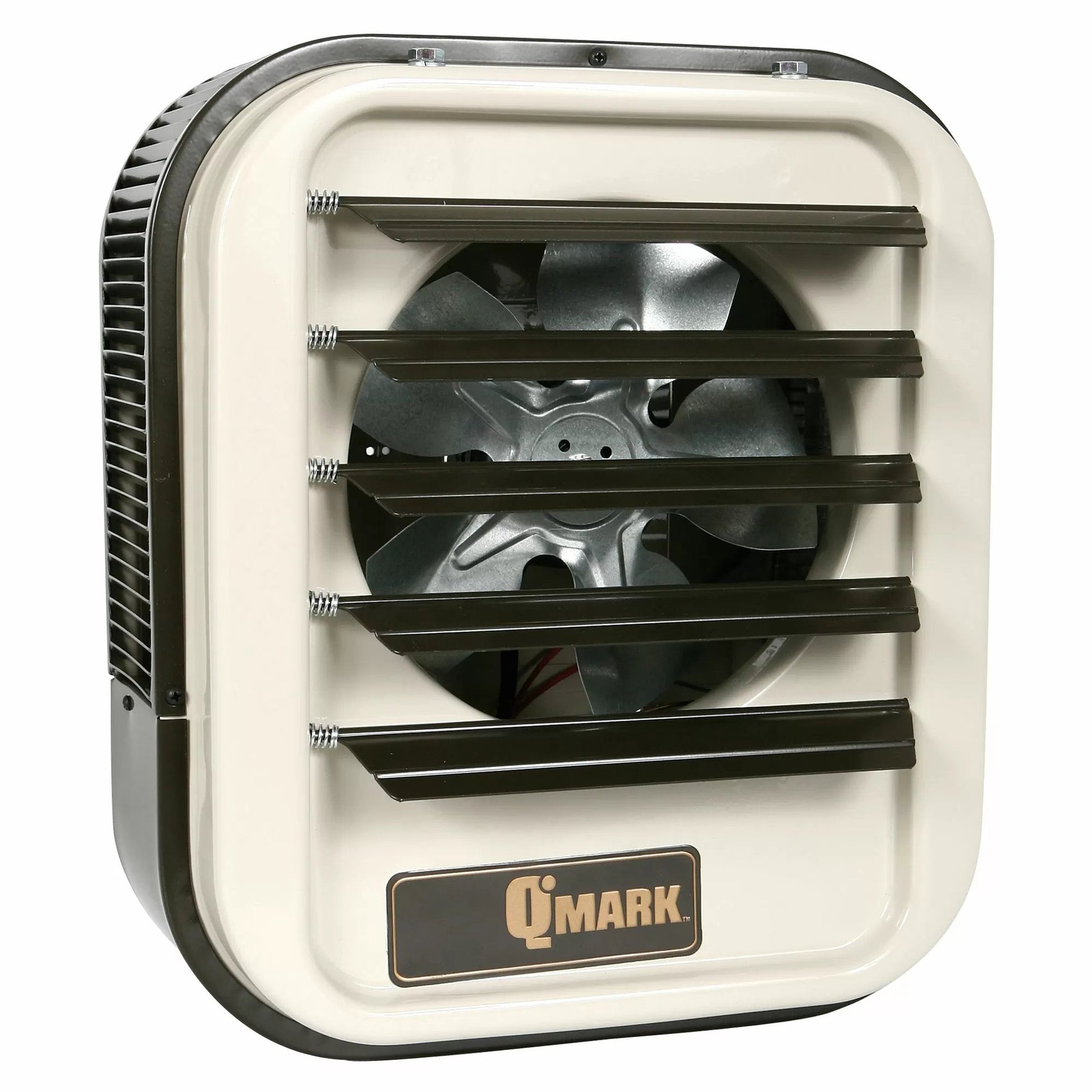

QMark® MUH Electric Unit Heater - 7.5 kW (MUH077)

, MUH077
QC Supply Part #: 21410
Shipping: Standard
Availability: In Stock - Usually Ships In 10-14 Business Days
$502.99

This 7.5 kW 277V heater is ideal for garages, workshops, warehouses, factories and shipping rooms.

Please Note:
  • This item cannot ship via USPS

Description

The QMark® MUH 7.5 kW, 277V Electric Unit Heater is ideal as a garage, shop or warehouse heater. It can be used for primary, supplementary, dual-system or spot heating. The advanced air flow design of this QMark® MUH Electric Heater draws air across the element for even air distribution. The specially designed venturi allows for added air throw.

Applications: Factories, Warehouses, Garages, Stores, Shipping Rooms, Power Stations, Aircraft Hangers

Features/Advantages:

  • Mount horizontally or vertically
  • Completely enclosed fan motor
  • Optional control kits are field installable, increasing MUH adaptability to the specification market
  • Summer fan kits are available to adapt heater into a cooling fan
  • Heavy-gauge die-formed steel housing. Front and back is a neutral grey, the wrap-around steel section is a statuary bronze color
  • Ruggedly built, yet lighter weight for easier installation. No piping flues, valves or traps
  • Advanced pull-through air flow design draws air across the heating element for more even air distribution and cooler element operation
  • Specifically designed ventrui outlet to meet that added throw as required in a vertical position
  • Individually adjustable discharge louvers to control air flow
  • 1- or 3-phase wirirng on 5-10 kW 208/240V and 15 kW 208V units (field interchangeable)
  • Aluminum-finned, copper clad steel sheath heating element has a longer life because of cooler sheath temperature and faster heat dissipation
  • Fan delay feature eliminates cold drafts. Element heats up before fan cuts in, then fan continues to distribute heat after element shuts off
  • 24V control transformer standard on most models, providing a safer and more accurate means of temperature control. 3 kW and 5 kW, 208-277V, have line voltage controls as standard
  • Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas
  • Meets all UL, NEC and OSHA requirements
SizeHeightWidthDepth
MUH03 & 05 16" 14" 7 1/2"
MUH07 & 10 21 3/4" 19" 7 1/2"
MUH15 & 20 21 3/4" 19" 12 3/4"
MUH25 & 30 30" 26 5/8" 11 3/4"
MUH40 & 50 30" 26 5/8" 17 1/8"
QC Part #MUH #PhasekWBTU/hrVoltsAmpsControl VoltCFMTemp. RiseAir ThrowMax. EffectWeight
21408
MUH0371 1 3 10,200 277 11 277
350 27° 12' 8' 27 lbs.
21409 MUH0571 1 5 17,000 277 18
277
350 45° 12' 8' 27 lbs.
21410 MUH077 1 7.5 25,600 277 27
24 650 37° 18' 9' 38 lbs.
21411 MUH107 1 10 34,100 277 36
24 650 49° 18' 9' 38 lbs.

Optional Accessories: 21023 Universal Wall and Ceiling Bracket. 21025 Unit Mount Thermostat - 2 Stage for 5 kW Unit; 21026 Unit Mount Thermostat - Single Stage for 7.5/10 kW Unit; 10001 Compatible Remote Mount Thermostat for 5 kW Unit

Call for availability (1-800-433-6340) on QMark® CWH Heater Models, QMark® GFR Heater Models, QMark® LFK Heater Models and QMark® CRA Heater Models.

Brand QMark
Manufacturer Part Number MUH077
Application Agricultural, Commercial / Industrial
