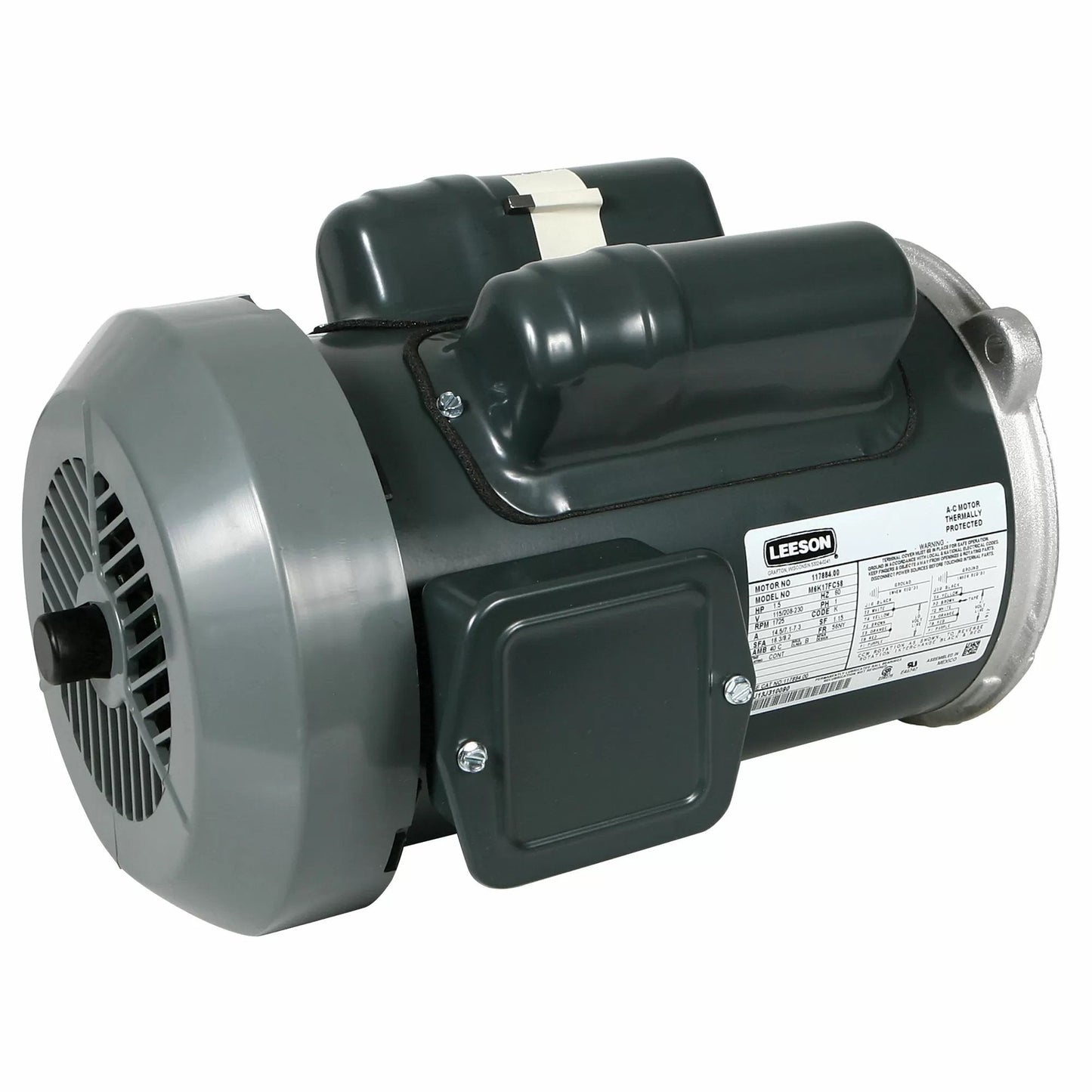

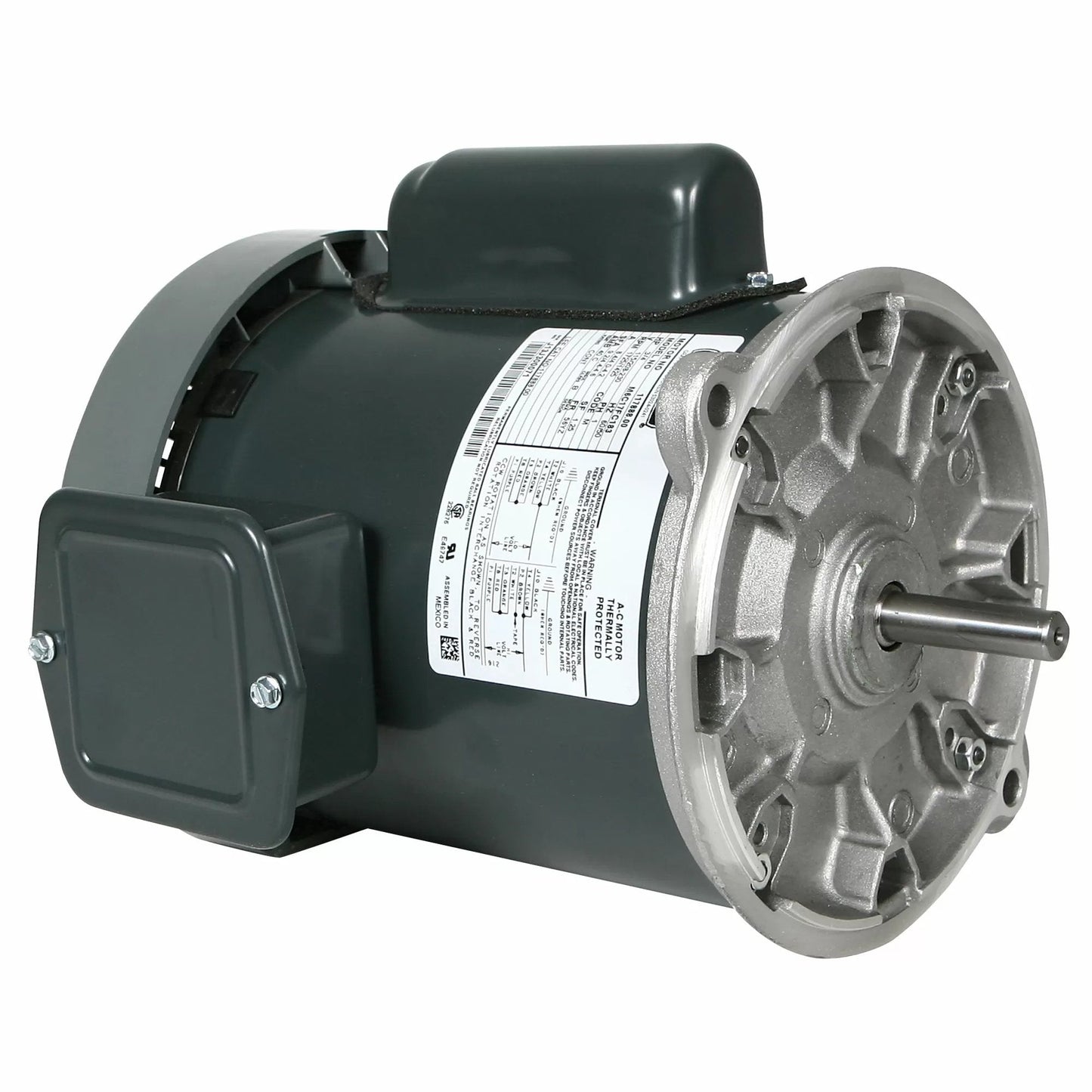

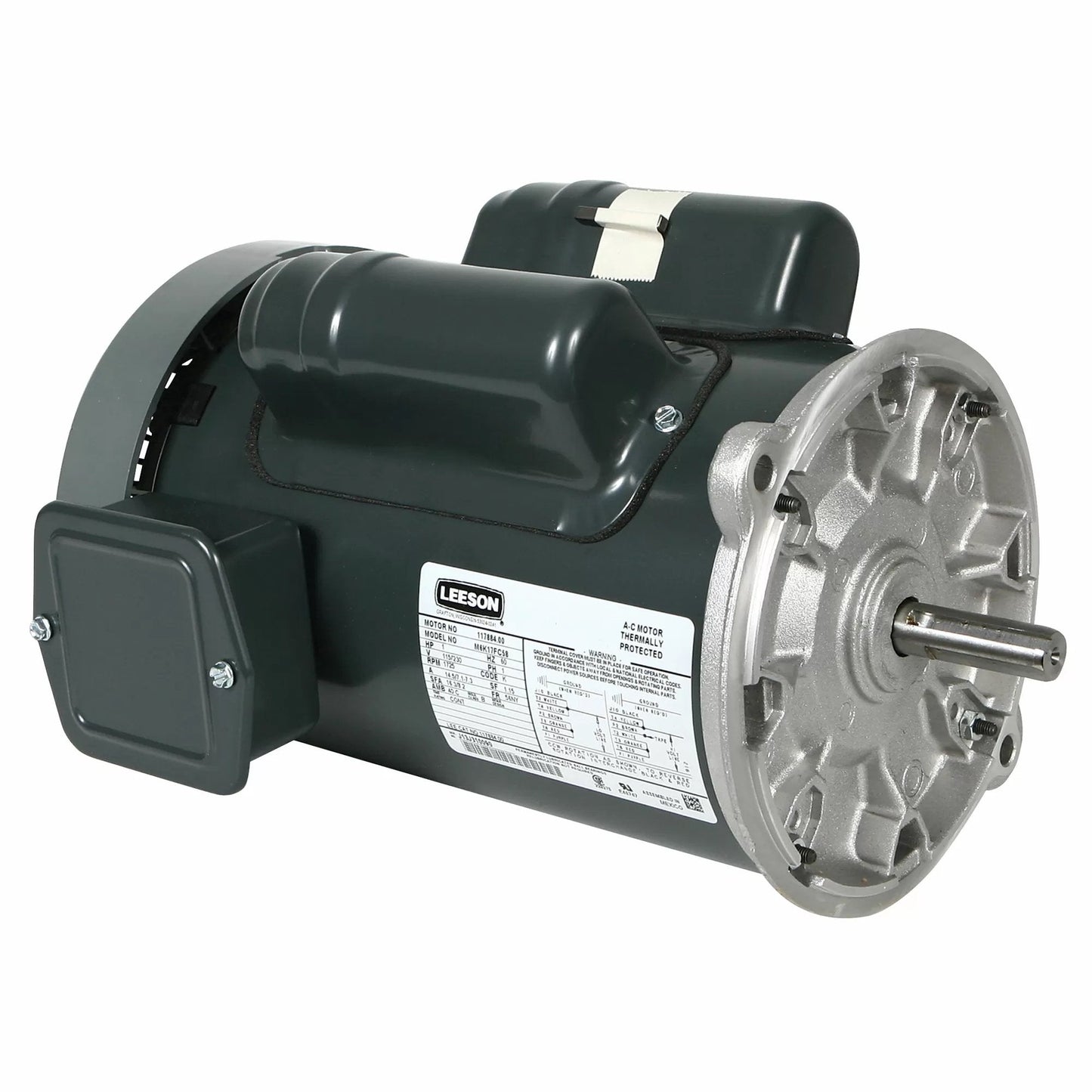

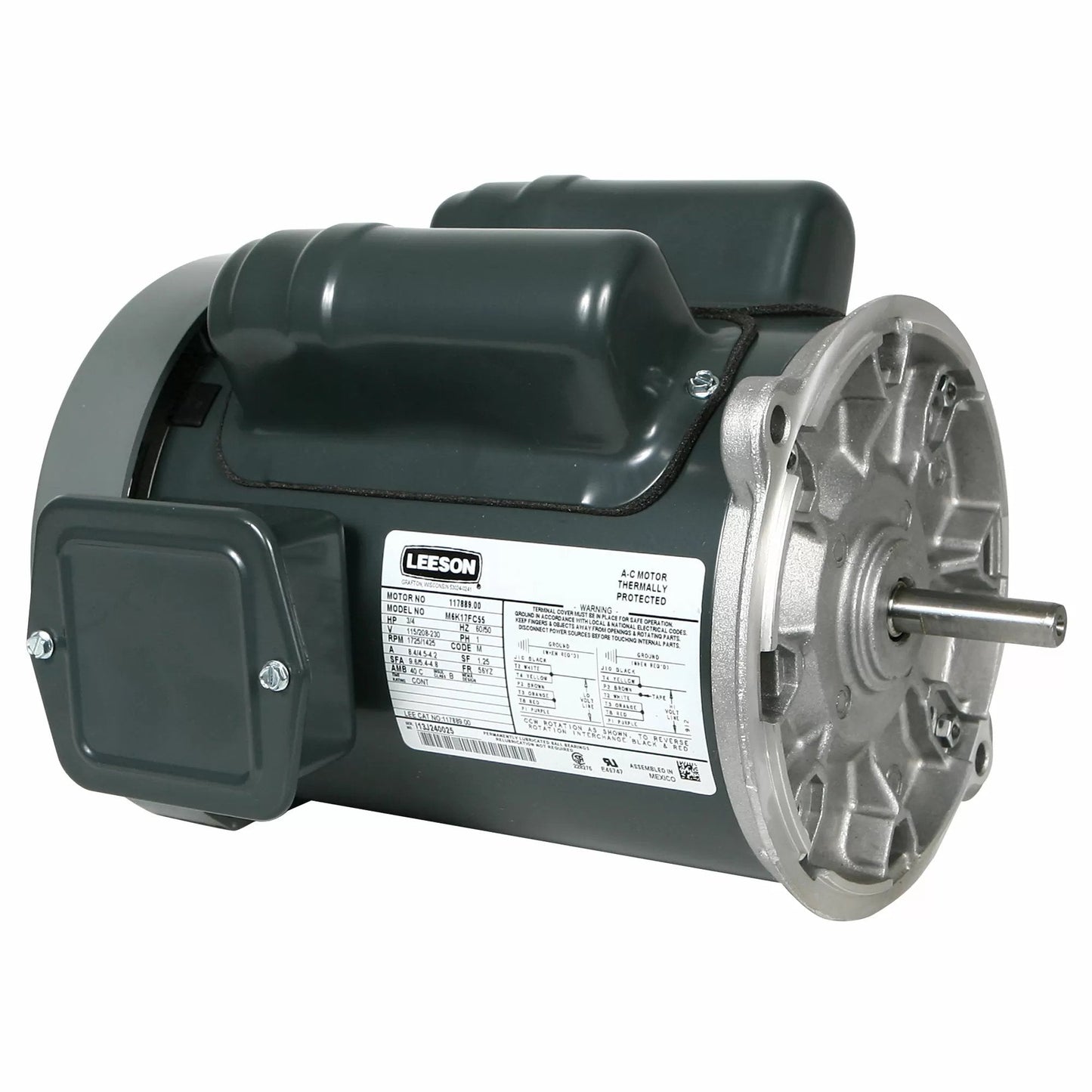

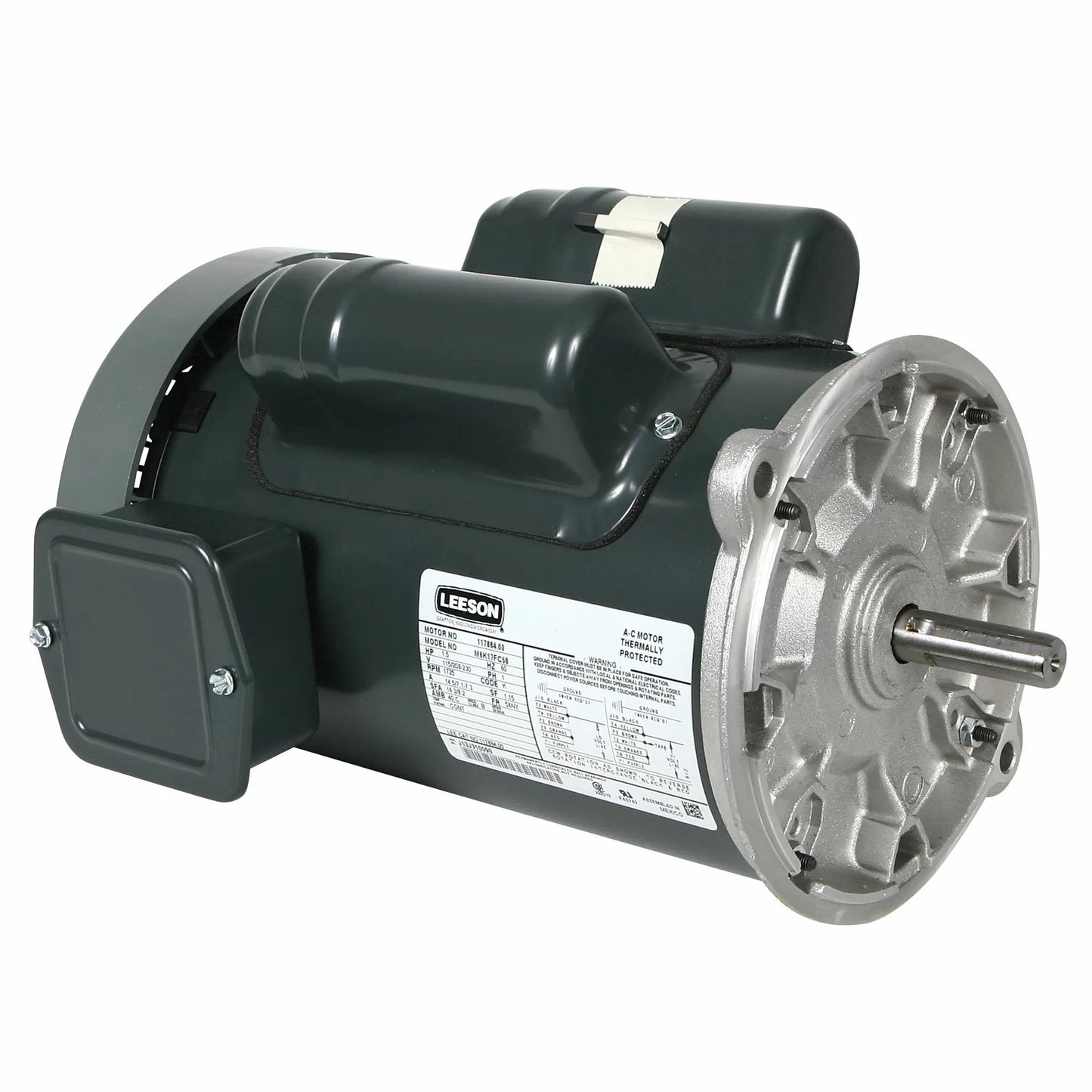

Used for swine and poultry feed delivery systems, Leeson Direct Drive Feed Auger Motors are highly efficient. These dust-tight TEFC motors come with double sealed ball bearings. The extended shaft through the end of the motors allow for manual turning. Includes a manual override protection switch. Meets or exceeds NEMA service factors.
Features:
- Manual override protection
- Extended shaft through the end of the motor allows for manual turning
- 3/4, 1 and 1 1/2 HP motors are capacitor start/capacitor run
| QC Part # | MFG # | HP | RPM | Shaft | Frame | Voltage | Amps | Weight (lbs) | "C" Dims |
|---|---|---|---|---|---|---|---|---|---|
| 190170 | 117887 | 1/3 | 1,725 | 1/2" | 56YZ | 115/208-230 | 5.8/2.8-2.9 | 21 | 12 |
| 190171 | 117888 | 1/2 | 1,725 | 1/2" | 56YZ | 115/208-230 | 8.4/4.0-4.2 | 23 | 12 |
| 190172 | 117889 | 3/4 | 1,725 | 1/2" | 56YZ | 115/208-230 | 9.6/5.4-4.8 | 31 | 13.13 |
| 190173 | 117883 | 1 | 1,725 | 5/8" | 56YZ | 115/208-230 | 10.8/6.0-5.4 | 40 | 14.51 |
| 190174 | 117884 | 1 1/2 | 1,725 | 5/8" | 56YZ | 115/208-230 | 16.3/8.2 | 44 | 14.51 |
