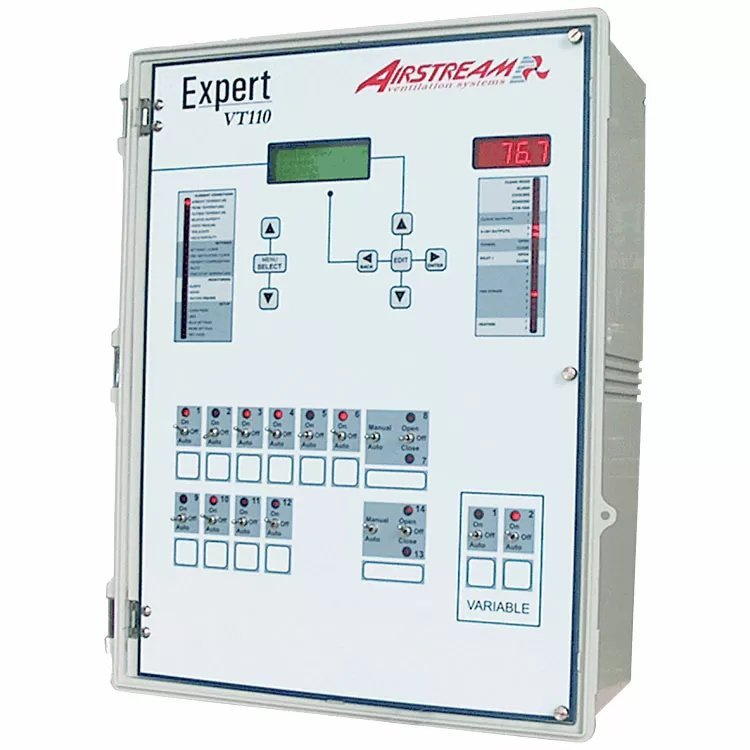

Expert VT110 Ventilation Controller

, EXPERT-VT110
QC Supply Part #: EXPERTVT110
Shipping: Standard
Availability: In stock
$2,593.00

The Expert line of ventilation controls offers the professional producer precise control and monitoring of environment, feeding and watering.

Description

The Expert line of ventilation controls offers precise control and monitoring of environment, feeding and watering.

Tunnel, 2 variable stages, and 10 on/off stages.

It has full-speed start up on the variable stages and a history feature that gives producers the ability to track heater run time, feed system time and high/low temperature readings.

Standard Features:

  • Zoning of heaters, inlets and circulation fans with up to eight inside temperature sensors
  • Power save feature, allows smaller less efficient fans to be switched off as the temperature rises
  • Air inlet, chimney and curtain outputs use timer logic based staging
  • Set point and minimum ventilation curves
  • USB flash drive is used to duplicate programming of multiple controls (Series II is not USB, it uses Config 300)
  • Seamless ventilation steps between stages when using variable speed fans
  • Separate day/night set points and minimum ventilation settings
  • Up to two timed outputs for feed systems, water or lights
  • Cooling stage with cycle timer
  • Alarm that monitors up to ten functions 16 are monitored in the Series II and 11 in VT110
  • Clean mode with soaking stage
  • Removable relays with individual indicator lights and on/off/auto switches
  • Overload and over voltage protection
  • Full speed start up on variable fan stages
  • Records heater run time up to seventy-five days
  • Records run time of up to four feed systems for up to seventy-five days
  • Records high and low temperature history for up to seven days
  • Records animal count, age and mortality

Control Specifications for the Expert VT110:

  • Total Relays: 14
  • On/Off Relays: 10
  • Actuator Outputs (Open & Close): 2
  • Heat Stages: 2
  • Brooder Stages: 1
  • Fan Stages: 8
  • Variable Stages: 2
  • Tunnel Stages: 1
  • Inlet Stages: 1
  • Stir Fan Stages: 1
  • Clock Outputs: 2
  • Cooling Stages: 1
  • Soaking Stages: 1
  • Back Up Relay Output: 1
  • 0-10 Volt Outputs: 2
  • Alarm Output: 1
Brand AP
Manufacturer Part Number EXPERT-VT110
