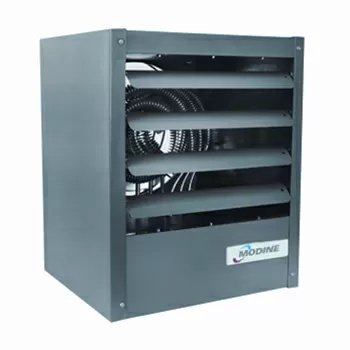

Modine Electric Unit Heater - 240 Volt / 1 Phase (34,100 BTU)

, HER100B1201

QC Supply Part #: 21111

Shipping: Standard

Availability: In Stock - Usually Ships In 4 Weeks

$815.25
The Modine Electric Unit Heater is recommended for lower-ceiling applications. Electric unit heaters have lower installation costs and are easier to install, requiring no venting, piping, valves or traps.
Description

Horizontal (Air Delivery) Type HER - RECOMMENDED FOR LOWER CEILING APPLICATIONS

The Modine Electric Unit Heater is recommended for lower-ceiling applications. Electric unit heaters have lower installation costs and are easier to install, requiring no venting, piping, valves or traps. Modine Electric Unit Heaters are equipped with horizontal air deflector blades to adjust airflow either up or down. Optional vertical deflector blades are also available to deflect air to the right or left, providing complete directional control over discharge of heated air. Horizontal delivery units are normally placed around the perimeter of the building where heat loss is greatest, so that the air stream from each heater "wipes" the wall to produce a blanket of warm air along the outside walls.

Key Features:

  • Unvented
  • Quiet Operation
  • Totally Enclosed Motors
  • Elements are Nickel Chromium
  • Elements Coated with Magnesium Oxide
  • Automatic Reset Limit Control
  • Application Flexibility
Part # Model Volts/Phase KW BTU/HR Max. Mtg. Ht.
Ft.
Temp. Rise Amps Weight (lbs.)
21100 HER5011 208/1P 5.0 17,100 8' 30° 24.5 52
21101 HER5012 240/1P 5.0 17,100 8' 30° 21.3 52
21102 HER5031 208/3P 5.0 17,100 8' 30° 14.3 52
21103 HER5032 240/3P 5.0 17,100 8' 30° 12.5 52
21104 HER5033 480/3P 5.0 17,100 8' 30° 6.5 52
21105 HER7511 208/1P 7.5 25,600 8' 45° 36.5 52
21106 HER7512 240/1P 7.5 25,600 8' 30° 31.7 52
21107 HER7531 208/3P 7.5 25,600 8' 45° 21.3 52
21108 HER7532 240/3P 7.5 25,600 8' 45° 18.5 52
21109 HER7533 480/3P 7.5 25,600 8' 45° 9.5 52
21110 HER10011 208/1P 10.0 34,100 9' 38° 49.4 67
21111 HER10012 240/1P 10.0 34,100 9' 38° 42.9 67
21112 HER10031 208/3P 10.0 34,100 9' 38° 29 67
21113 HER10032 240/3P 10.0 34,100 9' 38° 25.3 67
21114 HER10033 480/3P 10.0 34,100 9' 38° 13.3 67
21115 HER12531 208/3P 12.5 42,700 10' 48° 36.0 65
21116 HER12532 240/3P 12.5 42,700 10' 48° 31.4 65
21117 HER12533 480/3P 12.5 42,700 10' 48° 16.3 65
21118 HER15031 208/3P 15.0 51,200 10' 57° 42.9 74
21119 HER15032 240/3P 15.0 51,200 10' 57° 37.4 74
21120 HER15033 480/3P 15.0 51,200 10' 57° 19.3 74
21121 HER15031 208/3P 20.0 68,300 11' 49° 56.8 97
21122 HER20032 240/3P 20.0 68,300 11' 49° 49.4 97
21123 HER20033 480/3P 20.0 68,300 11' 49° 25.3 97
21124 HER25031 208/3P 25.0 85,400 12' 61° 70.7 98
21125 HER25032 240/3P 25.0 85,400 12' 61° 61.4 98
21126 HER25033 480/3P 25.0 85,400 12' 61° 31.4 98
Brand Modine
Manufacturer Part Number HER100B1201
Application Commercial / Industrial
Reviews

Customer Reviews

Easy to set up
Review by on Sep 9, 2014

The unit was easier to set up then I expected. The manual was very good, except that it did not explain the electrical connections very well. However, it was generally straightforward. I had it up and running in a half hour. Appears to function well.
