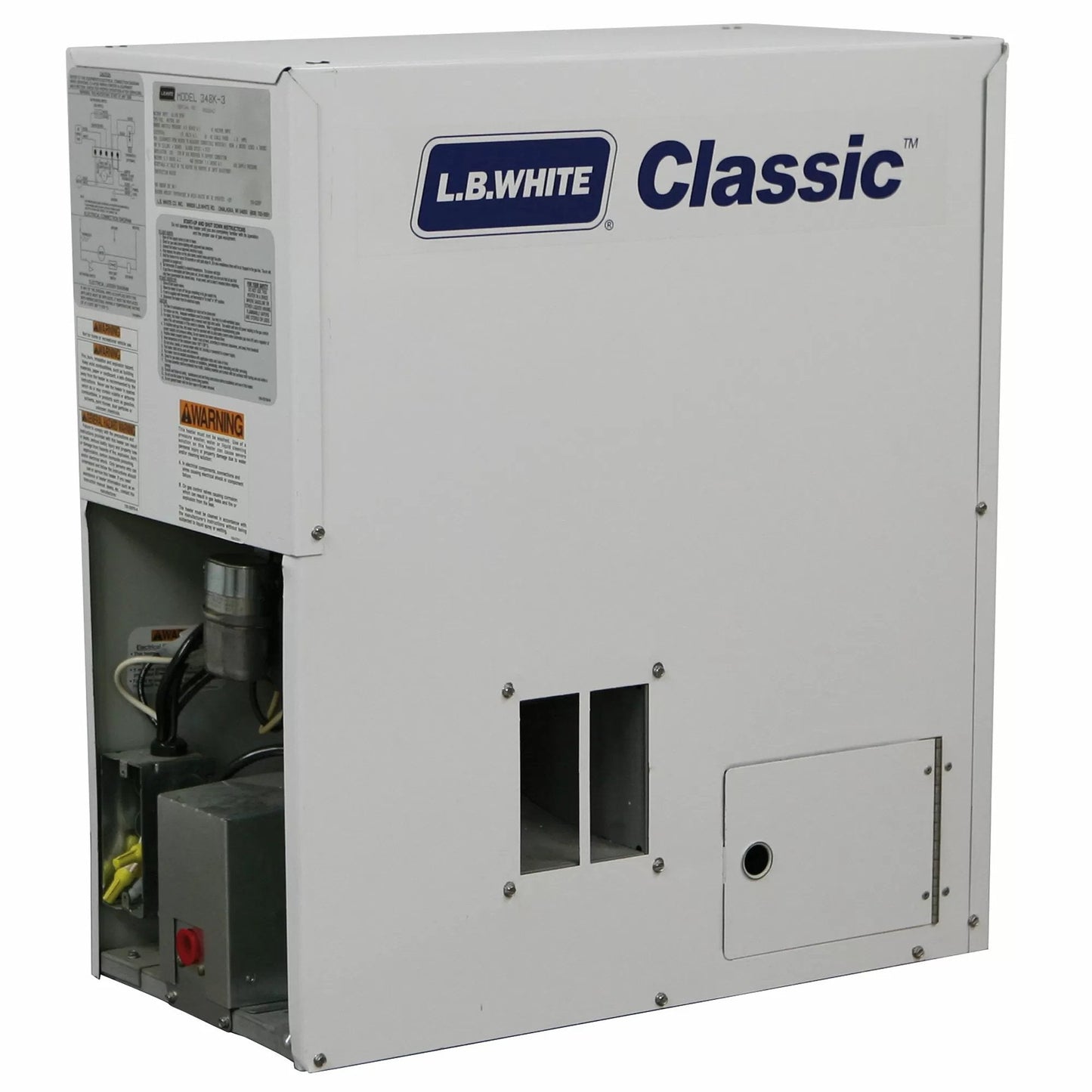

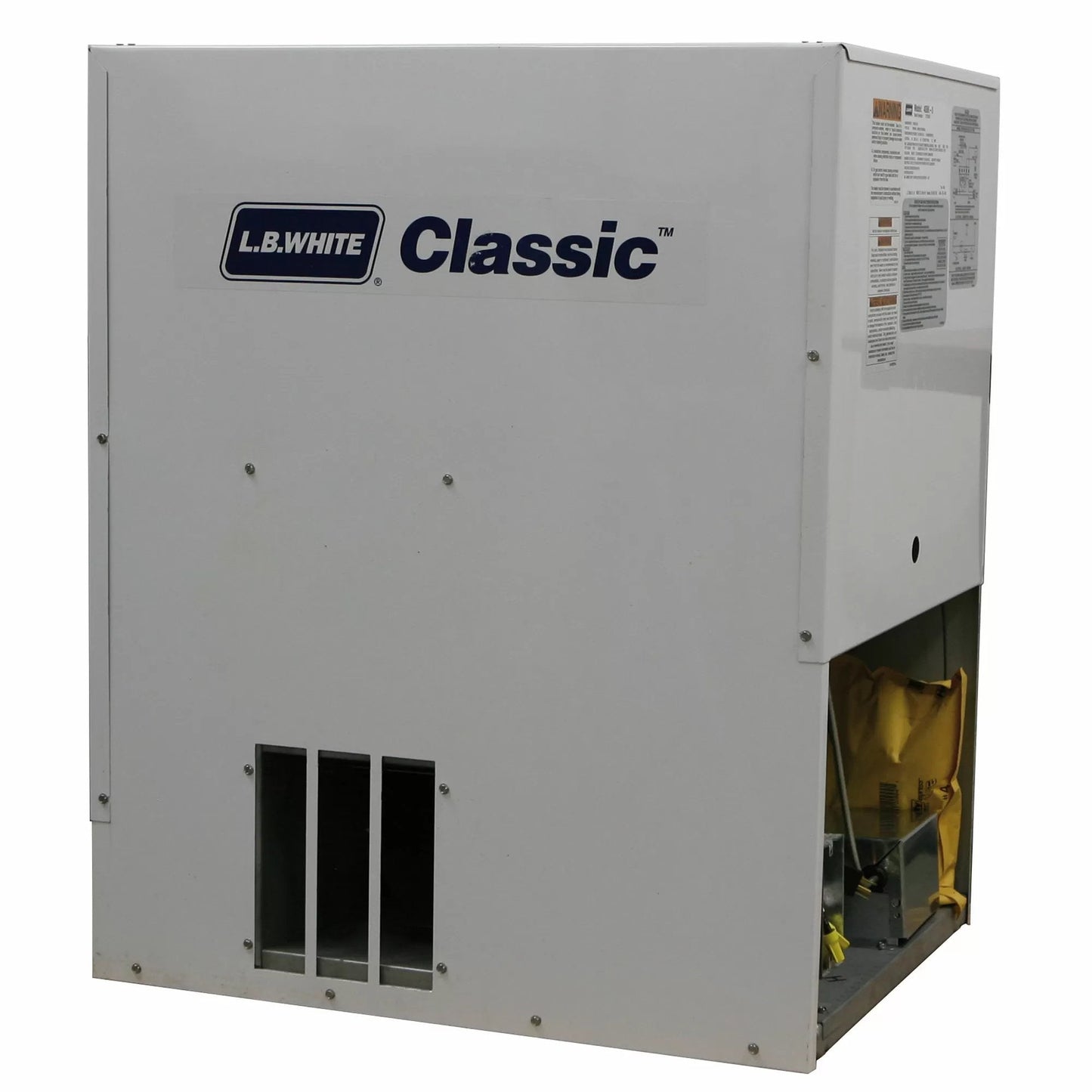

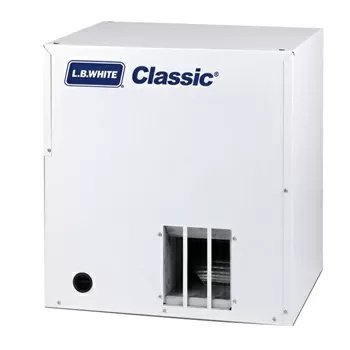

LB White® Classic™ 346 Pilot Light Ignition Propane Heater (Complete Unit).
The LB White® Classic™ Heaters offer a highly efficient Pilot Light design with safety features and installation options to fit your needs.
Quantity Pricing Available! Call For Details.
- Pilot Light Ignition
- Versatile Indoor Mount Options
- Eyebolts and Chains Included for Easy Hanging
- Service Panels Remove Effortlessly for Quick Access to Components
- Quick Take-apart Pilot Assembly for Quick Cleaning of Pilot Orifices
- Sealed Caps on Solenoid and Pilot Control Fully Protect Gas Valves
- High Quality Corrosion Resistant Components
- Case Constructed of Steel with Tri-Shield Coating (a non-corrosive hot-dipped galvanized steel, an oven-cured epoxy primer and a baked, thermosetting polyester)
- 10-year Cabinet Warranty
- Certified to Meet or Exceed U.S. and Canadian CSA Safety Standards
This Complete Unit Includes:
- 10’ Gas Hose
- Regulator – 2nd Stage
- Gas Cock
For heater only, see #20210.
- Model #: Classic 60 (346K)
- Maximum Fuel Consumption: 2.8 lbs. per hour
- CFM: 250
- Electrical Supply: 115 Volts, 60 Hz., 1 Phase
- Power Cord: 5' (standard)
- Cabinet Material: Steel with Tri-Shield Coating
- Dimensions: 21 1/4" L x 11 1/4" W x 24" H
- Net Weight: 55 lbs.
- Shipping Weight: 61 lbs.
|Manufacturer Part Number||900-346K|
|Vent Type||Non Vented|
Manuals & Resources
- LB White® Classic™ 60 Complete LP Owner's Manual
- LB White® Pilot Light Series Installation & Service Guide
- LB White® Classic™ Brochure & Spec Sheet
- LB White® Forced Air Maintenance Checklist
- LB White® Warranty & Return Policy
